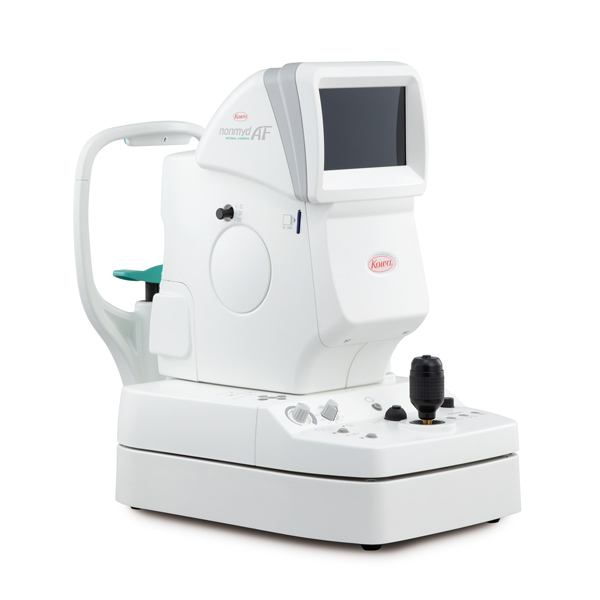

Die ultimative, digitale Funduskamera bietet:
- Non-Mydriatische Farbfundusaufnahmen
- Non-Mydriatische Farbfundusaufnahmen
- Anteriore Aufnahmen
- 3.3 mm minimaler Pupillendurchmesser
- Mehrere interne Fixationsziele zur Erstellung eines Kompositbildes
- Beste Leistung dank hochwertiger Optiken – Made in Japan
The ultimate digital fundus camera offers:
- Non-Mydriatic color fundus images with auto adjustment of proper strobe intensity
- Lower flash intensity gives less stress for the patient
- Anterior images
- Stand-Alone mode available - saving at SD-card and printing with a pict-bridge printer
- Multiple internal fixation targets- Central, Disc, Macula, Mosaic 8 positions
- 2 field angle mode
Aufnahmewinkel:Field angle: | 45° und 26.6° x 22.2°45°and 26,6 °x 22,2° |
Arbeitsabstand:Working distance: | 30 mm30mm |
Minimaler Pupillendurchmesser: Minimum pupil diameter: | 4 mm, (SP 3,3 mm) 4 mm, (SP 3.3mm) |
Justierungsbereich für optische Komponenten: Adjustment range for optical components: |
60 mm vorwärts/rückwärts 98 mm links/rechts 27 mm vertikal (elektrisch) 60 mm forward/backward 98 mm left/right 27mm vertical (electric) |
Kompensationsbereich des untersuchten Auges: Compensation range of the examined eye: |
Ohne Kompensation: -12D bis +13D Kompensation +: +10D bis +35D Kompensation -: -32D bis -10D Without compensation: -12D ~ +13D Compensation +: +10D ~ +35D Compensation -: -32D ~ -10D |
Kinnauflagen-Einstellbereich: Chinrest adjustment range: | 55 mm (elektrisch verstellbar) 55 mm (electrically adjustable) |
Fokussieren: Focusing: | Justieren von geteilten Leuchtbalken/Fokussierbalken Auto focusing matching two splt lines |
Interne Fixationsmarke: Internal fixation marks: | Posterior, Sehnerv, Zentrale Makula, Mosaik 8 Positionen Posterior, optic nerve, central macula, mosaic 8 positions |
Kamera: Camera: | 2448×2048 pixel CMOS sensor Kamera 5 Mega picel CMOS sensor : 2,448 x 2,048 pixel |
Monitor: Monitor: | 7 Zoll LCD 7 inch LCD (800 x 480 pixel) |
Lichtquelle: Light source: |
Observierung: Nah-infrarote LED Fotografie: Xenonblitzlampe Observation: Near-infrared LED Photography: Xenon flash lamp |
Stromversorgung: Power Supply: |
Eingang: AC100-240V, 50/60Hz Stromverbrauch: 150VA Input: AC100-240V, 50/60Hz Power consumption: 150VA |
Gewicht: Weight: | 23kg (ohne Digitalkamera) 23 kg |
Abmessungen: Dimensions: | 310 (B) x 504 (T) x 548 (H) mm 310 (W) x 530 (L) x 550 (H) mm |
